Overcoming Anatomical Limitations: The New Frontier of Implantology

With the application of new products and innovative techniques, extreme clinical cases that in the past required multiple, staged surgical procedures can today be solved with a single-step protocol. In his lecture at the 2018 Southern Implants International Forum, Francesco Amato, DDS, MD, PhD, discussed some of the most anatomically challenging cases and conditions and offered clinical suggestions, practical tips, and scientific evidence for avoiding complications and facilitating predictable results. The main message of his lecture was that practitioners can frequently overcome anatomical limitations through the use of a single, minimally invasive procedure with site-specific implants.

Ultra-Short implants (≤6 mm) have more than 5 years of follow-up showing a survival rate of 98% in multiple bone classifications, with both immediate and delayed loading in both maxilla and mandible.¹

Besides requiring sinus pneumatization, the floor of the sinus can occupy valuable space. In a case with a single posterior tooth extracted and immediately loaded, the tapered Ultra-Short implant was placed (Figure 9 through Figure 15). The domed apical end of the implant prevents penetration of the sinus floor while allowing good primary stability to be achieved. A combination of allograft and xenograft was packed around the implant. Again, insertion torque was >50 Ncm.

The patient presented with the posterior mandible showing severe atrophy (Figure 16). The computed tomography (CT) scan showed 3.6 mm and 4.6 mm of available bone height with a failing premolar (Figure 17 and Figure 18). To regain function, the premolar was removed, and two Ultra-Short implants were placed in the molar region and splinted together (Figure 19 through Figure 22).

Acute lesions are thought to be reasons to use a delayed placement protocol. Use of a dual-axis, subcrestal angle-corrected implant allows the clinician to remove the lesion and atraumatically extract the tooth. This leaves good-quality bone intact while allowing the lesion to heal. The 12° Co-Axis^® implant (Southern Implants) is placed into the good bone at an angle while the prosthetic platform still emerges in the correct position, occlusally parallel. As is also the case for standard implants, >70 Ncm insertion torque was readily achieved when all walls of the site were engaged, and >50 Ncm insertion torque was possible in compromised sites with atraumatic extractions using the "ice cream cone" regenerative technique to maintain soft-tissue contours.

Molars are the most commonly lost teeth and are frequently subject to apical cysts. With the use of an ultra-wide implant such as the Southern Implants MAX, it is not necessary to delay treatment. After atraumatic removal of the tooth, keeping the interradicular bone intact, the MAX implant is placed immediately with a polyether ether ketone (PEEK) anatomically shaped healing abutment to maintain soft-tissue contours. The MAX implant engages a larger surface area of the socket walls and is placed away from the buccal plate. The sharply tapered body achieves excellent insertion torque. A retrospective study by Amato et al² has shown survival rates of 99% using wide implants with and without lesions. It is not unusual to reach insertion torques >100 Ncm with ultra-wide implants, as the insertion torque increases with diameter.

Screw-retained restorations are preferable to cementation for reasons of retrievability and biological complications. Due to the anatomy of the anterior maxilla, angle correction is required for the prosthetic table to be in the correct position to allow screw retention in many cases. Angled abutments increase cost and take up vertical prosthetic space. Using a 24° dual-axis implant (Co-Axis) allows the implant to engage the palatal bone and achieve primary stability regardless of the missing buccal plate. The implant was tightened to 50 Ncm, and the facial plate was grafted with a combination of allograft and xenograft, maintaining tissue contours.

Francesco Amato, DDS, MD, PhD

Figures and Images

Figure 1

Figure 2

Figure 3

Figure 4

Figure 5

Figure 6

Figure 7

Figure 8

Figure 9

Figure 10

Figure 11

Figure 12

Figure 13

Figure 14

Figure 15

Figure 16

Figure 17

Figure 18

Figure 19

Figure 20

Figure 21

Figure 22

Figure 1

Fig 1. Preoperative image (Fig 1) and radiograph (Fig 2) showing lack of sufficient bone in the premolar site.

Figure 2

Fig 2. Preoperative image (Fig 1) and radiograph (Fig 2) showing lack of sufficient bone in the premolar site.

Figure 3

Fig 3. Three implants were placed, including two Ultra-Short implants (radiograph view in Fig 6) measuring 4.5-mm diameter x 4.1-mm long, externally hexed.

Figure 4

Fig 4. Three implants were placed, including two Ultra-Short implants (radiograph view in Fig 6) measuring 4.5-mm diameter x 4.1-mm long, externally hexed.

Figure 5

Fig 5. Three implants were placed, including two Ultra-Short implants (radiograph view in Fig 6) measuring 4.5-mm diameter x 4.1-mm long, externally hexed.

Figure 6

Fig 6. Three implants were placed, including two Ultra-Short implants (radiograph view in Fig 6) measuring 4.5-mm diameter x 4.1-mm long, externally hexed.

Figure 7

Fig 7. Postoperative outcome at 6 months, image (Fig 7) and radiograph (Fig 8).

Figure 8

Fig 8. Postoperative outcome at 6 months, image (Fig 7) and radiograph (Fig 8).

Figure 9

Fig 9. Posterior tooth to be extracted.

Figure 10

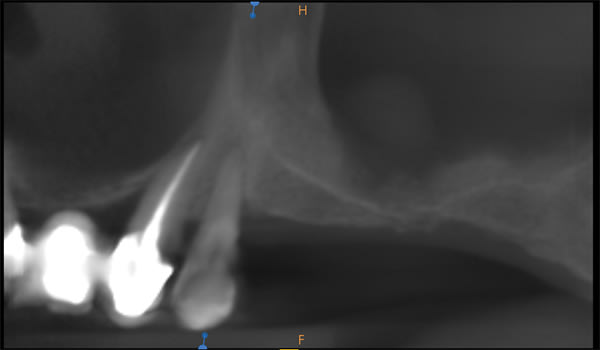

Fig 10. Radiograph of site.

Figure 11

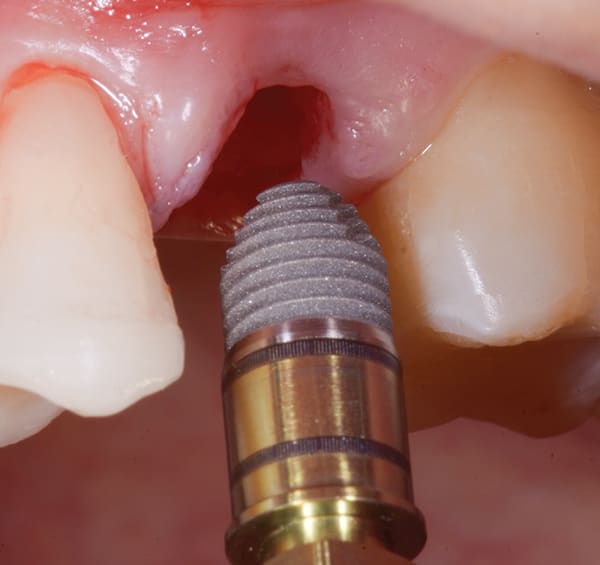

Fig 11. Implant with domed apical end.

Figure 12

Fig 12. The implant was immediately loaded.

Figure 13

Fig 13. The prosthetic was ready for placement.

Figure 14

Fig 14. Postoperative outcome at 6 months, image (Fig 14) and radiograph (Fig 15).

Figure 15

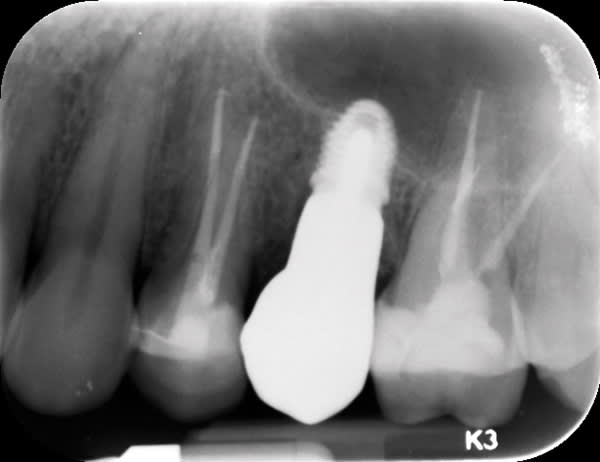

Fig 15. Postoperative outcome at 6 months, image (Fig 14) and radiograph (Fig 15).

Figure 16

Fig 16. Preoperative image.

Figure 17

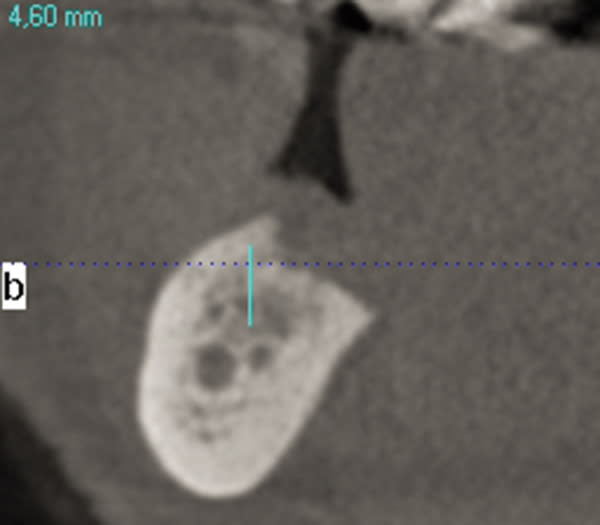

Fig 17. Preoperative CT scans.

Figure 18

Fig 18. Preoperative CT scans.

Figure 19

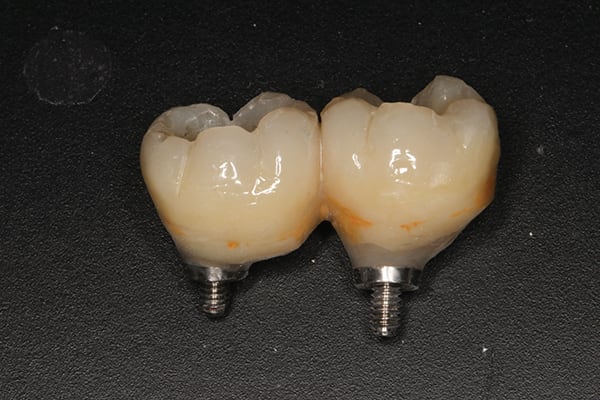

Fig 19. Two Ultra-Short implants were placed and splinted together.

Figure 20

Fig 20. Two Ultra-Short implants were placed and splinted together.

Figure 21

Fig 21. Two Ultra-Short implants were placed and splinted together.

Figure 22

Fig 22. Postoperative outcome at 6 months.
