A healthy, nonsmoking, 19-year-old male patient presented with tooth agenesis of teeth Nos. 7 and 10 (Figure 1 and Figure 2). He underwent orthodontic treatment from August 2005 through September 2009 due to progeny tendency with a removable orthodontic appliance. Treatment with fixed orthodontic appliance was performed from November 2013 through April 2016.
Upon completion of the orthodontic therapy, the gaps between the roots of the adjacent teeth and the crowns of the adjacent teeth were restored. The patient was showing very limited gap widths and unfavorable interradicular space conditions. Initial marginal bone thickness in the gaps was approximately 4.5 mm (Figure 3) with apical thinning (Figure 4 and Figure 5).
After discussing the treatment plan with the patient it was agreed upon that two small-diameter (2.9 mm) implants would be placed in positions 7 and 10, followed by fixed restorations. The position of the implants was carefully assessed using a cone-beam computed tomography (CBCT) technique (Figure 4 through Figure 6), and a 3D surgical drilling template was developed and printed to facilitate the drilling process (Figure 7 and Figure 8). Postoperative temporary prostheses were created to avoid gingival pressure and to secure the position stability of the adjacent teeth (Figure 9).
Implant placement was done with the patient under local anesthesia. The implant bed preparation was performed by means of a 3D-perforated surgical drilling template. Two small-diameter implants (Bone Level Tapered [BLT], SLActive®/Roxolid®, 2.9 mm x 12 mm, Straumann, www.straumann.us) were placed in positions 7 and 10 using an open-flap technique (Figure 10), followed by bone augmentation by means of autologous bone chips and bone xenograft. Collagen membranes and apical titanium pins were used to stabilize the augmented regions, and respective protective caps were placed on the abutment portion of each implant. The flap was repositioned and the wound was closed with stress-free, tight sutures (Figure 11).
The patient was prescribed with antibiotic (2x 600-mg Clindamycin for 7 days) and anti-inflammatory (Ibuprofen 400 mg) therapy. Exact positioning of implants was further controlled and confirmed using ultra low-dose CBCT technique (Figure 12 and Figure 13).
After 9 weeks of healing, minimal surgical invasion (ie, puncture incision and displacement of the tissue) in positions 7 and 10 was performed, healing screws (SC H3.5) were placed (Figure 14), and an impression was taken to produce temporary crowns for better gingiva formation and profiling (Figure 15). Following separate impression-taking (Figure 16 and Figure 17) individual restorations were designed with Straumann CARES® Visual Software 10.1 (Figure 18), produced (Figure 19), and placed.
Both the patient and practitioner were satisfied with the extraoral and intraoral appearance after treatment. This was manifested by superb gingival development and good pink/white esthetics (Figure 20 and Figure 21). Despite the initial very limited gap widths and the unfavorable interradicular space conditions, the final result was excellent.
The Straumann small-diamter BLT 2.9-mm implant represents an enrichment of the author’s treatment portfolio that greatly simplifies treatment procedures in cases with unfavorable narrow space conditions, often found in young patients.
Kay Vietor, Dr med dent
Private practice for oral surgery and Implantology in Langen, Germany; Post-graduate education and degree in Oral Surgery; Fellow, International Team for Implantology, Basel, Switzerland
Figure 1

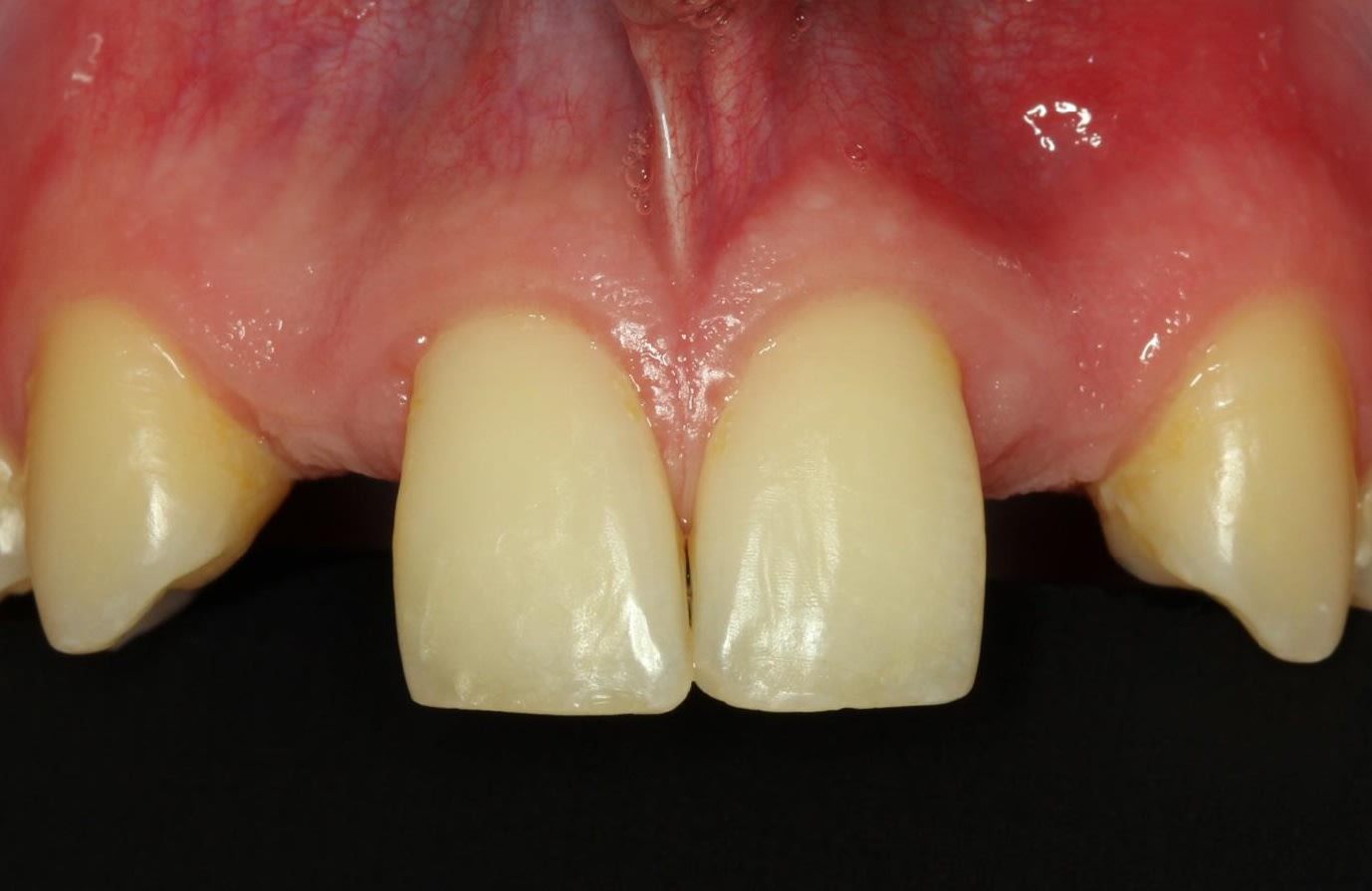

Fig 1. Initial presentation showing tooth agenesis of teeth Nos. 7 and 10.
Figure 2
Fig 2. Initial presentation showing tooth agenesis of teeth Nos. 7 and 10.
Figure 3

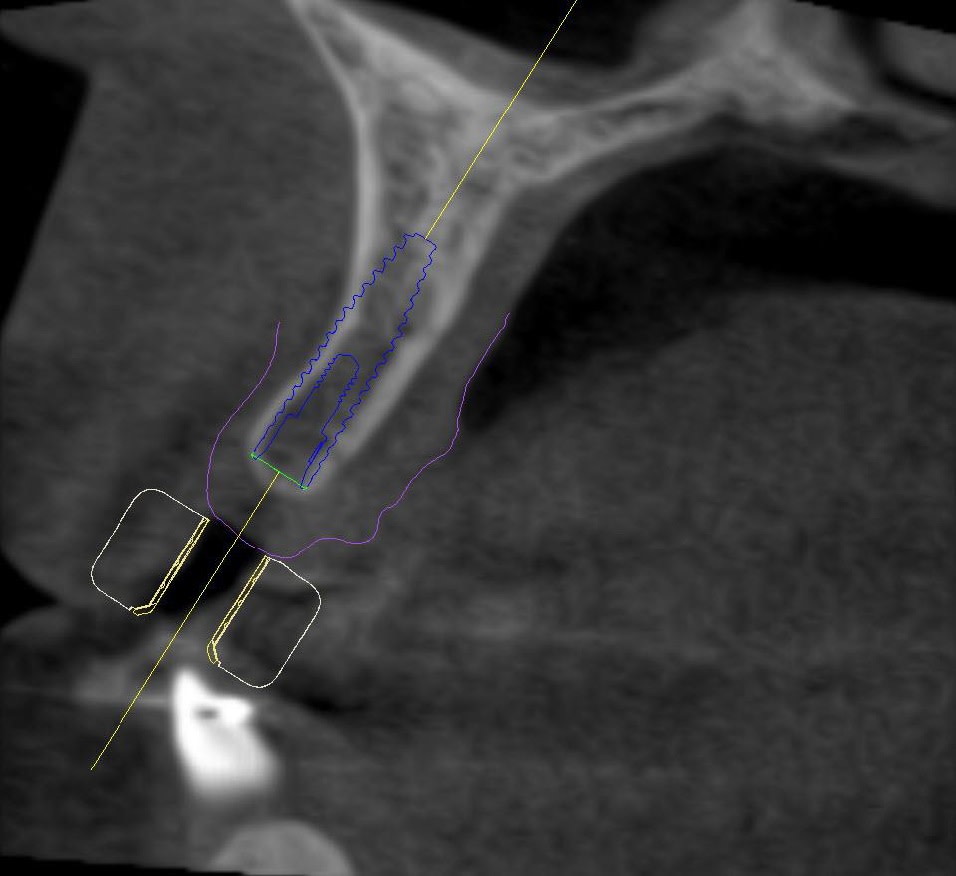

Fig 3. CBCT imaging revealed marginal bone thickness of approximately 4.5 mm in the gaps of the teeth.
Figure 4
Fig 4. CBCT imaging also revealed apical thinning.
Figure 5

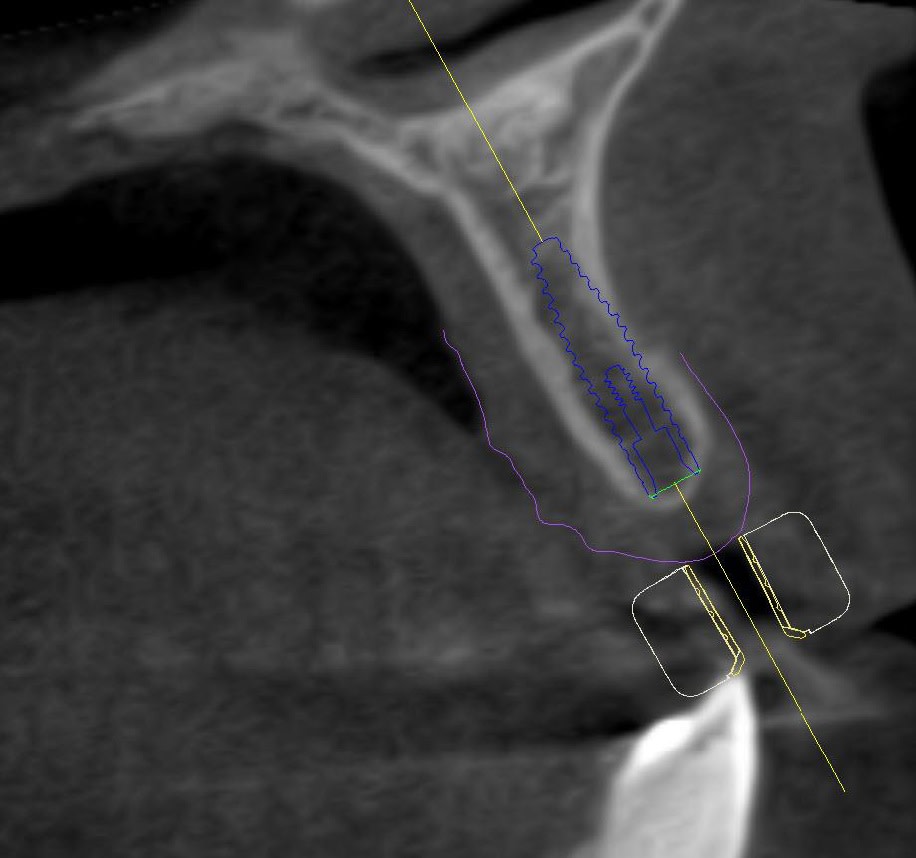

Fig 5. CBCT imaging also revealed apical thinning.
Figure 6
Fig 6. Positioning of the implants.
Figure 7
Fig 7. 3D surgical drilling template.
Figure 8
Fig 8. 3D surgical drilling template.
Figure 9
Fig 9. Temporary prostheses.
Figure 10
Fig 10. Placement of two small-diameter implants.
Figure 11
Fig 11. Flap repositioning and wound closure.
Figure 12
Fig 12. Positioning of implants confirmed using CBCT.
Figure 13
Fig 13. Positioning of implants confirmed using CBCT.
Figure 14
Fig 14. Placement of healing screws in positions 7 and 10.
Figure 15
Fig 15. Good gingiva formation and profiling 6 weeks after temporary restoration.
Figure 16

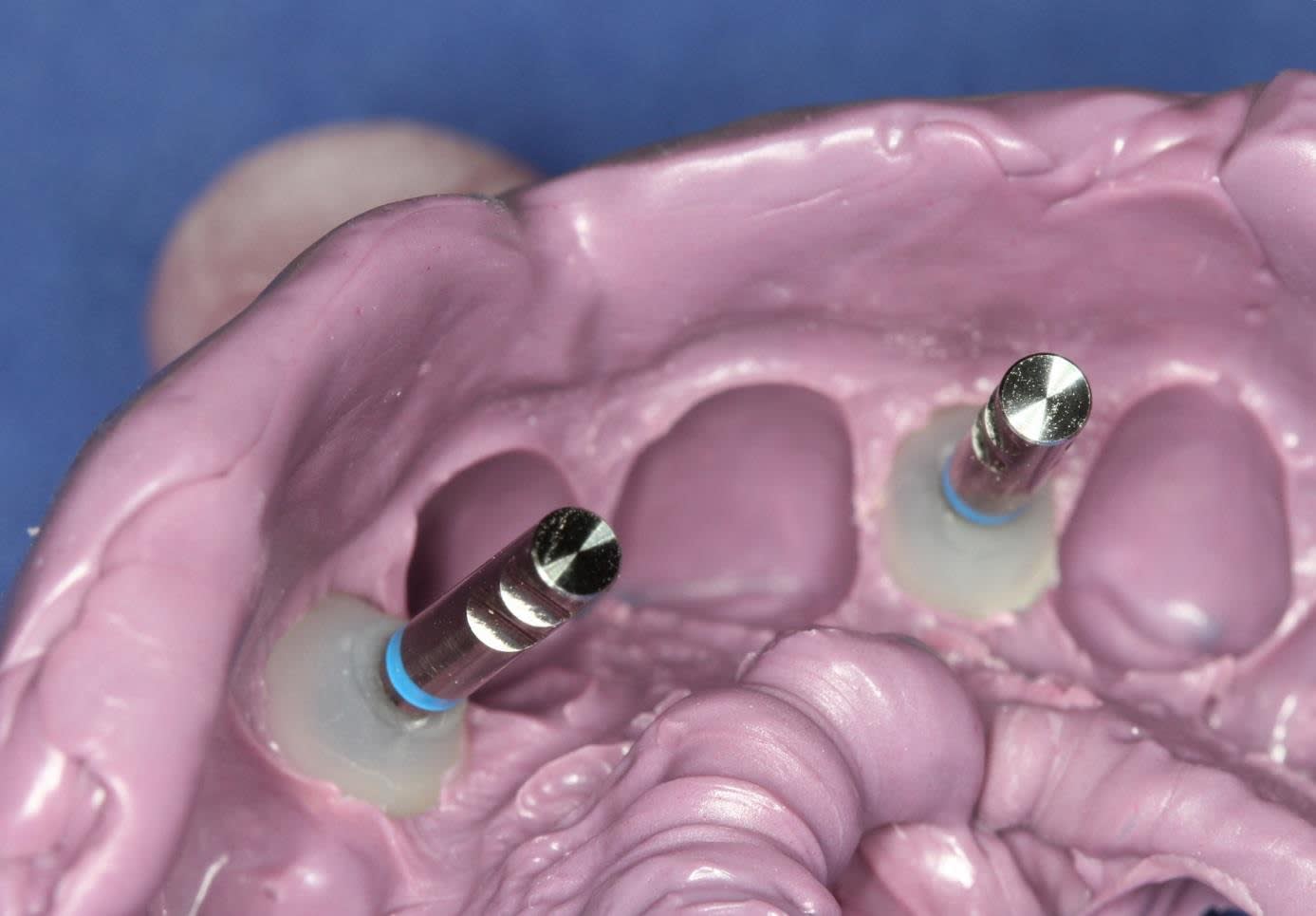

Fig 16. Individual impression-taking.
Figure 17
Fig 17. Individual impression-taking.
Figure 18
Fig 18. Restorations designed with Straumann CARES® Visual Software 10.1.
Figure 19
Fig 19. The individual restorations.
Figure 20.

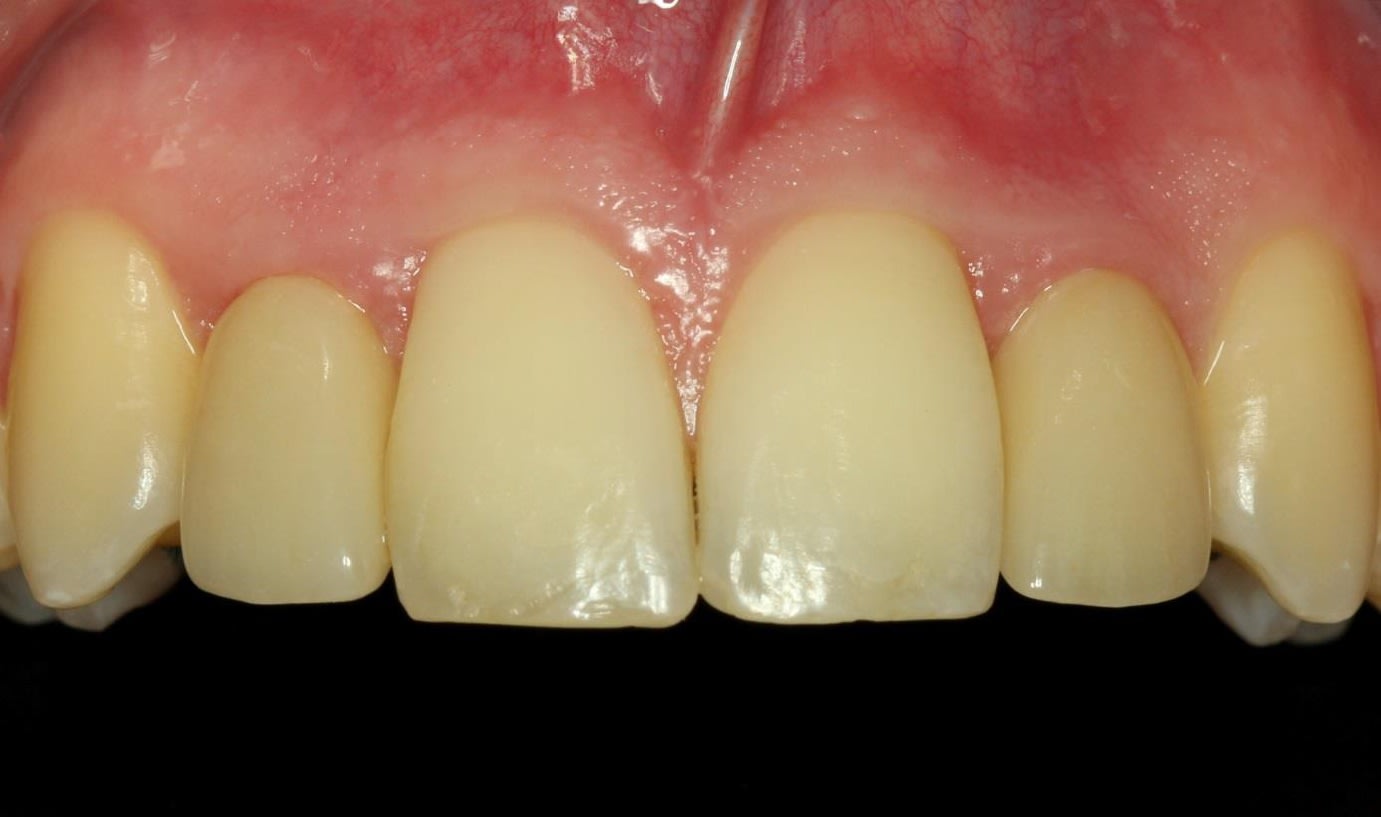

Fig 20. Post-treatment results.
